Caching and CDN

CDN	Caching
Reduced Latency	Reduced Latency
High Availability	Lowered Server Load
Improved Security	Improved UI

Contents

• Caching
• CDNs

Caching

Technique used to improve the performance and efficiency of a system. It involves storing a copy of data in a temporary storage (cache) so that future requests for that data can be serverd faster.

Browser Caching

• Browser will store the data in a directory on client’s hard drive.
• We use the cache-control header to tell browser how long this content should be cached

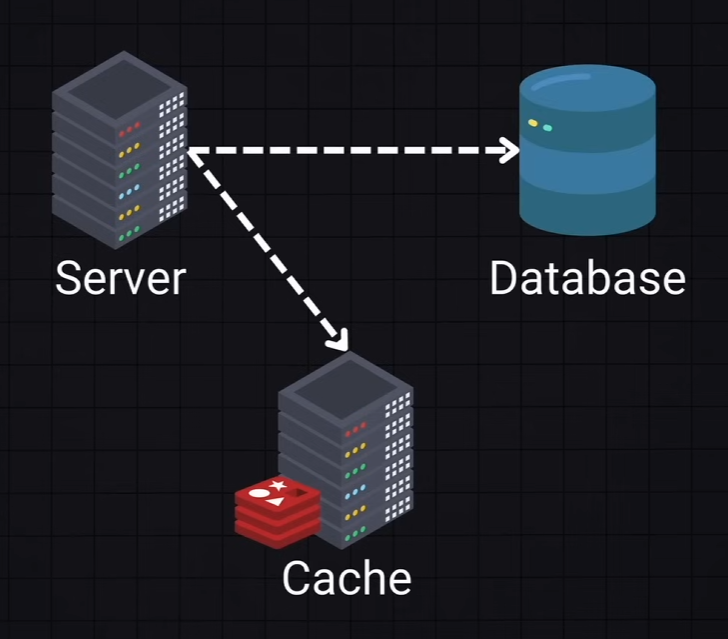

Server Caching

• Store frequently accessed data on the server-side to reduce expensive operations (like database queries)

• Typically stored in a separate cache server (like Redis)

• Write-Around Cache

  • fetch from cache, otherwise permanent storage, return data, write cache

• Write-Through Cache

  • simultaneously write to cache and permanent storage
• Write-Back Cache
  • write to cache first, then to permanent storage

Eviction Policies

What happens if the cache is full ? We need to set rules to remove from the cache when it is full. Common used policies are:

• LRU Least recently used
• FIFO First In First Out
• LFU Lest Frequently Used

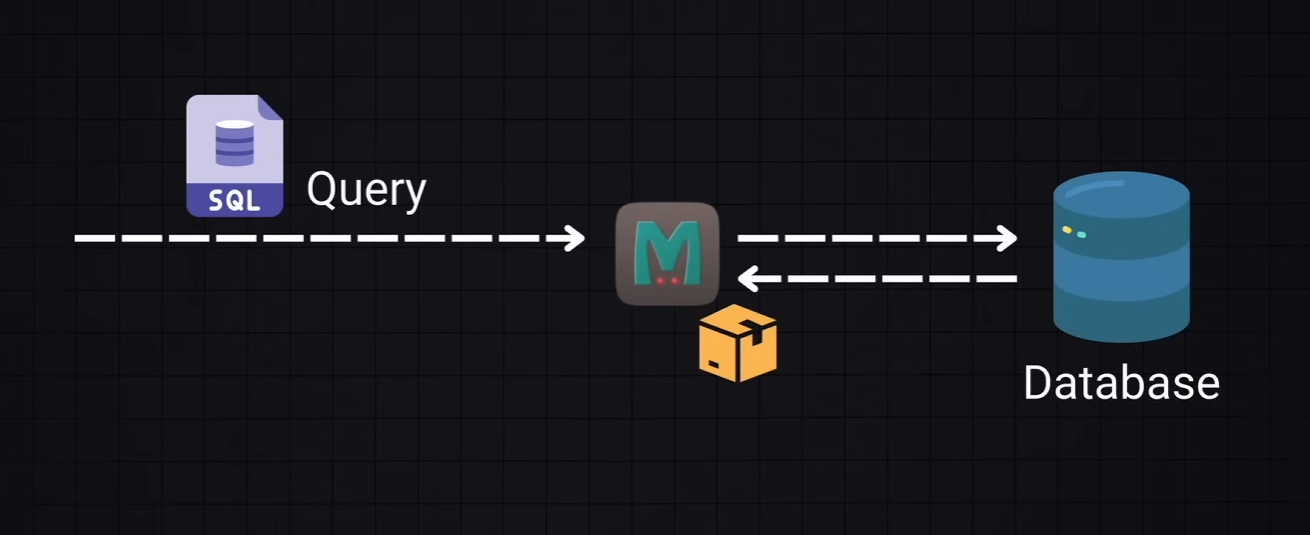

Database Caching

Usually done by the database internally or by an external cache layer like Redis or Memcached

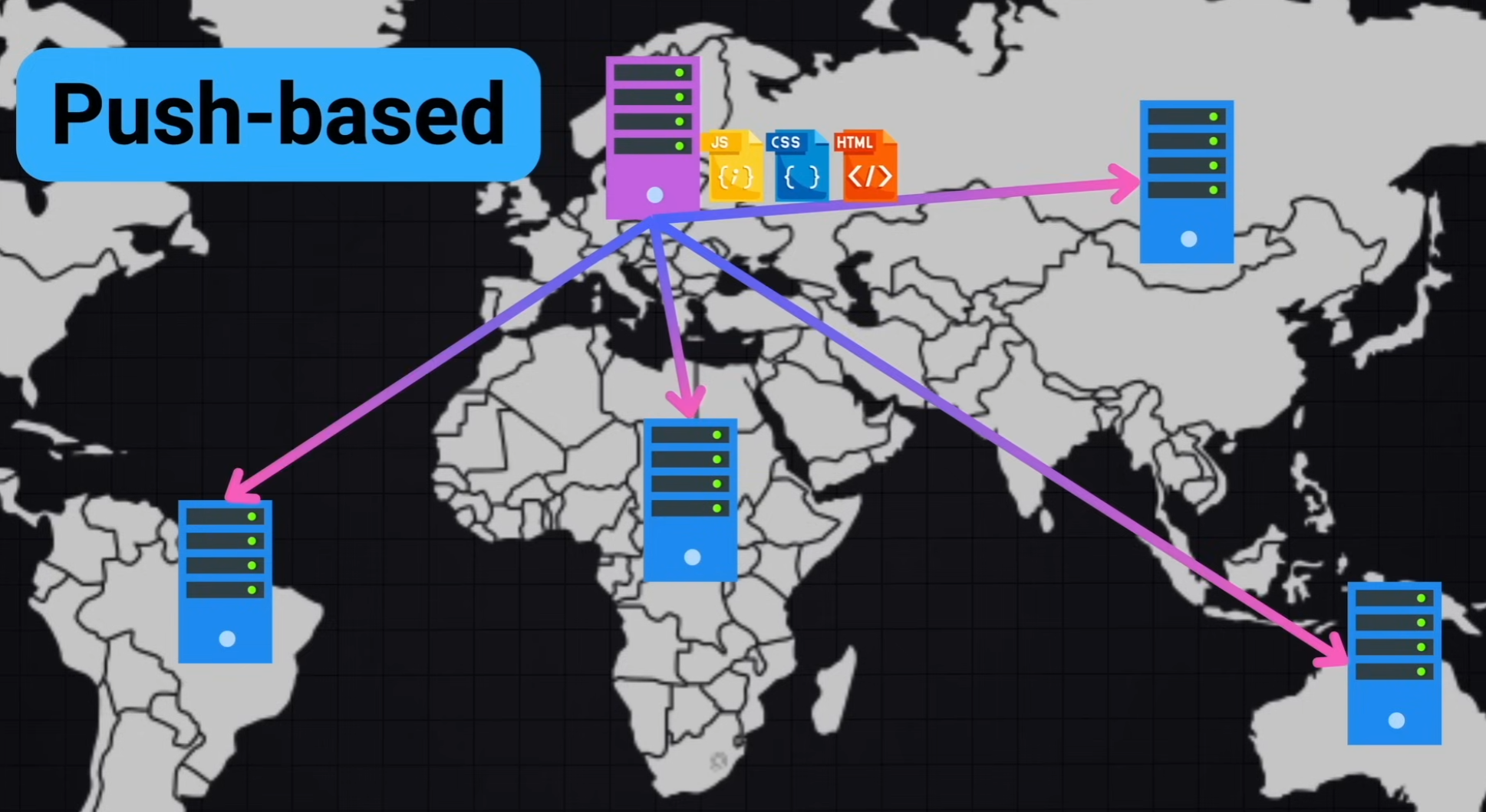

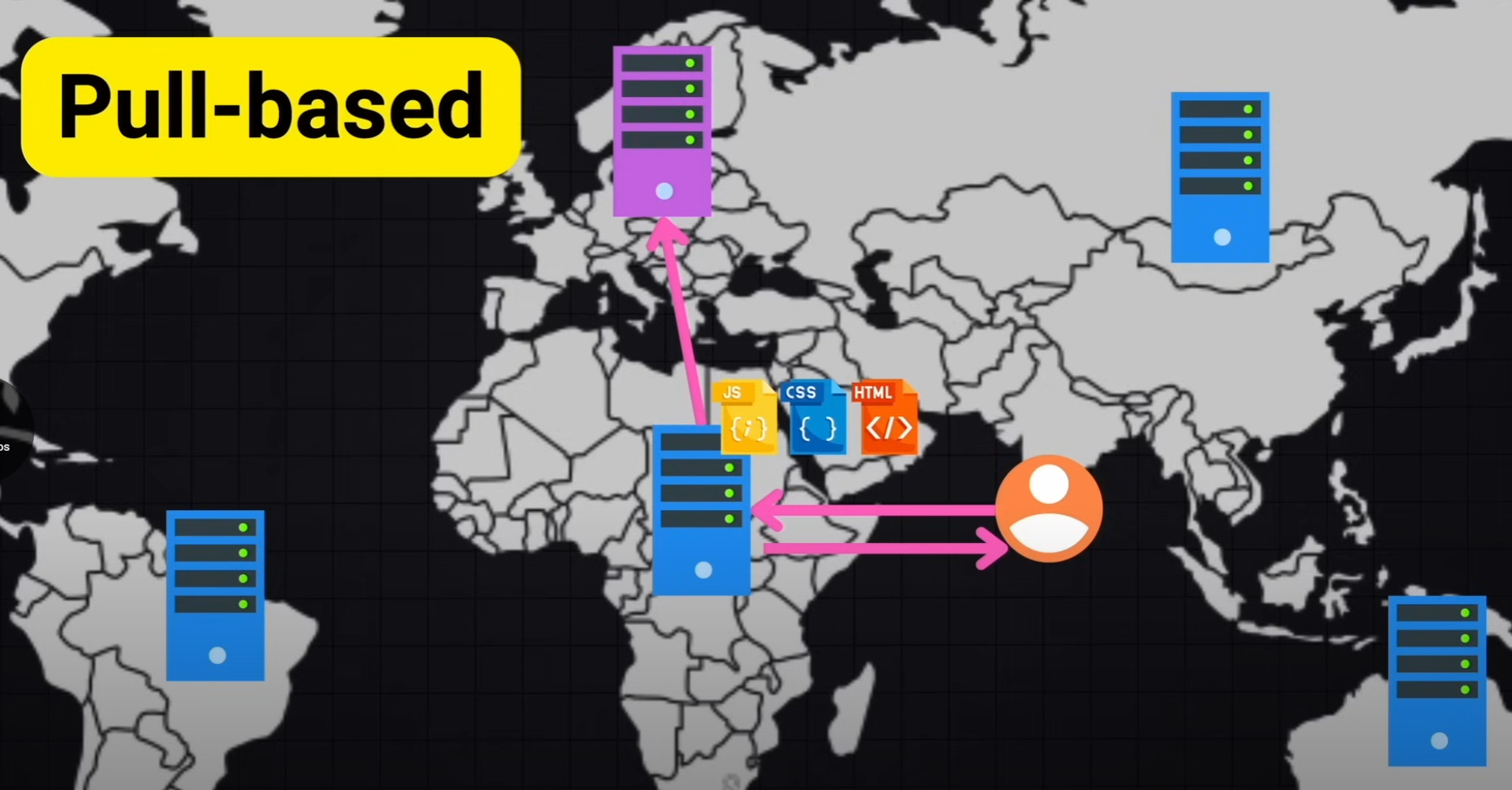

Content Delivery Networks (CDN)

Generally used to serve static content like HTML, JS, CSS and media files. They cache the content from the original server and deliver it to users from the neares CDN server. If the CDN server has the content it will serve it, otherwise it will request it from the original server and cache it.
